Semi Brushless Type
Description

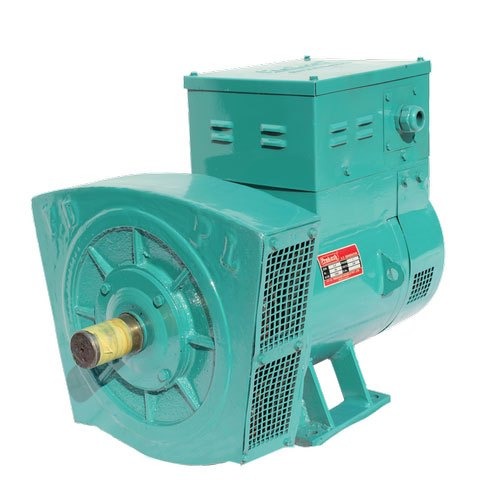

Alternator– Semi Brushless Type Indogen Series
| Technical Specification | |||||||
| Model | Rated Power | No. of Phase | Volts | Max Current (Amps) | Power Factor | RPM | |
| KVA | KW | ||||||
| PS-IG 16A | 16.0 | 16.0 | 1 | 230 | 70.0 | 1.0 | 1500 |
| PS-IG 20A | 20.0 | 20.0 | 1 | 230 | 87.0 | 1.0 | 1500 |
| PS-IG 28A | 28.0 | 28.0 | 1 | 230 | 122.0 | 1.0 | 1500 |
| PS IG 36A | 36.0 | 36.0 | 1 | 230 | 157.0 | 1.0 | 1500 |
| PT – IG 15A | 15.0 | 12.0 | 3 | 415 | 21.0 | 0.8 | 1500 |
| PT – IG 20A | 20.0 | 16.0 | 3 | 415 | 28.0 | 0.8 | 1500 |
| PT – IG 22.5A | 22.5 | 18.0 | 3 | 415 | 31.0 | 0.8 | 1500 |
| PT – IG 25A | 25.0 | 20.0 | 3 | 415 | 35.0 | 0.8 | 1500 |
| PT – IG 30A | 30.0 | 24.0 | 3 | 415 | 42.0 | 0.8 | 1500 |
| PT – IG 35A | 35.0 | 28.0 | 3 | 415 | 49.0 | 0.8 | 1500 |
| PT – IG 40A | 40.0 | 32.0 | 3 | 415 | 56.0 | 0.8 | 1500 |
| PT – IG 45A | 45.0 | 36.0 | 3 | 415 | 63.0 | 0.8 | 1500 |
| PT – IG 50A | 50.0 | 40.0 | 3 | 415 | 70.0 | 0.8 | 1500 |
| PT – IG 65A | 52.0 | 52.0 | 3 | 415 | 90.0 | 0.8 | 1500 |
| PT – IG 82.5A | 82.5 | 66.0 | 3 | 415 | 114.0 | 0.8 | 1500 |
